VFD1A6MS21ANSAA
Name:
Delta Inverter 0.2KW
Input power (V)：
230V 1-Phase
Output current(A)：
1.60 A
Motor power (KW)：
20KW
Protection level：
IP20/UL Open Type
Safety Torque Off (STO)：
Safety Torque Off (STO)
Description:
Delta inverter MS300 combines the advantages of miniaturization, high functionality, high reliability, easy installation, etc., and converts every investment of industrial resources into fruitful results. Optimized structure and lock-free screw terminal design provide a convenient overhaul process, saving installation and maintenance time. The interface is friendly to use, and the parameter setting can be easily completed through the purpose selection. Built-in USB function enables fast parameter copying and improves production efficiency.
Built-in brake unit, no built-in filter, built-in PLC
1. Support induction motor and permanent magnet motor open circuit control
2. Output frequency range 0 ~ 599Hz (standard model)
3. Built-in PLC programmable (2K steps)
4. Built-in 33kHz high-speed pulse input terminal x1 (MI7)
5. Built-in 33kHz high-speed pulse output terminal x1 (DFM)
6. With safety certification Torque Off (SIL2/PLd)
7. Full range of built-in brake crystals
8. New circuit board coating (IEC 60721-3-3 class 3C2) to strengthen environmental tolerance

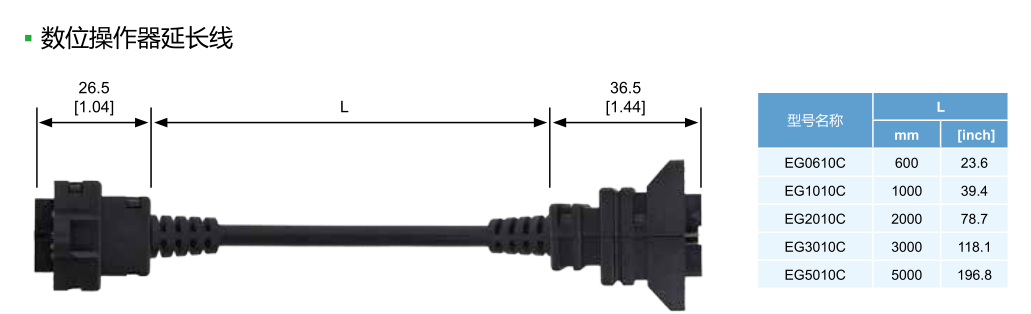

9, 5-digit high-brightness led keypad (can be pulled out to the control panel using the E/M/B extension cable)
10. Supports multiple communication interfaces: Profibus DP, Modbus TCP, EtherNet/IP, DeviceNet, CANopen
| Input power (V) |
230V 1-Phase |
| Output current(A) |
1.60 |
| Control method |
IMVF; IMVFPG; IMSVC (Space Vector Control); IMFOC (Field Oriented Control) Sensorless; PMSVC |
| Built-in EMC filter |
No |
| Built-in DC reactance |
No |
| Built-in brake crystal |
Yes |
| Motor power (KW) |
0.20 |
| Protection level |
IP20/UL Open Type |
| Version |
Wall Mount |
| Safety Torque Off (STO) |
Yes |
| Motor Types |
Induction Motor (IM); Interior Permanent Magnet Motor (IPM); Surface Permanent Magnet Motor (SPM) |
| Number input (points) |
7 |
| Digital output (points) |
2 |
| Relay output (points) |
1 |
| Analog input 0 ~ 10V (points) |
1 |
| Analog input -10 ~ 10V (points) |
1 |
| Analog input 0 ~ 20mA (points) |
1 |
| Analog input 4 ~ 20mA (points) |
1 |
| Analog output 0 ~ 10V (points) |
1 |
| Analog output -10 ~ 10V (points) |
0 |
| Analog output 0 ~ 20mA (points) |
1 |
| Analog output 4 ~ 20mA (points) |
1 |
| Pollution Degree |
2 |
| Humidity |
90.00 |
| Туре of load |
Constant Torque; Fan & Pump Application |
| Types of Workstations |
Normal Duty; Heavy Duty |
| Built-in PLC |
Yes |
| Support external power supply card |
Yes |
| Slot 1 Card |
Yes |
| Slot 2 |
No |
| Slot 3 Card |
Not Available |
| Min Carrier Frequency (kHz) |
2 |
| Maximum carrier frequency (kHz) |
15 |
| Maximum output frequency (Hz) |
599 |
| Drive type |
Single Drive |
| Inverter Module Type |
Single Axis |
| Rectifier Module Type |
不适用 |
| Unit type |
Inverter Module |
| Inverter module input voltage |
不适用 |
| Built-in motor |
不适用 |
| Cooling Method |
Natural |
| Dimensions (W x H x D) (mm) |
68x128x96 |
| Mounting |
Wall Mount |
| USB |
True |
| RS232 |
False |
| RS422 |
False |
| RS485/Modbus Serial |
True |
| Ethernet/Modbus TCP |
False |
| EtherNet/IP |
False |
| DeviceNet |
False |
| CANopen inv. send ! |
False |
| Profibus |
False |
| DMCNET |
False |
| EtherCAT® |
False |
| BACnet MS/TP |
False |
| BACnet IP * |
False |
| Profinet |
False |
